Diagnosing the cause of a leak is only half the problem. Choosing the right repair method — and understanding why certain methods fail — is equally critical.
The waterproofing and leak repair industry uses a wide range of repair approaches, from full hacking and re-waterproofing to injection sealing, pipe relining, surface coatings and crack repair. Each method has specific conditions under which it works effectively and specific conditions under which it will fail — regardless of how well it is executed.
This guide is based on real-world leak repair scenarios across Singapore residential and commercial properties, including cases investigated and rectified by Flux Solutions.
What makes repair selection difficult is this:
👉 the same symptom (e.g., ceiling leak below a bathroom) can require completely different repair methods depending on the root cause. A membrane failure requires hacking and re-waterproofing. A floor trap collar separation requires localised repair. A pipe leak requires pipe repair or replacement. Applying the wrong method wastes money and leaves the leak unresolved.
This page explains each common repair method — what it does, when it is the correct approach, when it is a waste of money, and the key factors that determine success or failure.
Selecting the correct repair method depends entirely on identifying the actual cause of the leak — using the wrong method for the wrong cause is one of the most common reasons leak repairs fail.
Full Hacking and Re-Waterproofing
What It Is
Complete removal of the existing floor finishes (tiles, screed) down to the structural slab, followed by full re-application of the waterproofing membrane system, new screed and new floor finishes.
👉 This is the most invasive and most expensive repair method for wet area leaks — but when the existing membrane has failed, it is the only method that reliably resolves the problem.
When It Is the Correct Approach
- Confirmed waterproofing membrane failure beneath the floor finishes — the membrane itself has cracked, debonded, deteriorated or was inadequately applied during original construction.
- Multiple leak points across the wet area floor — indicating widespread membrane failure rather than a single localised defect.
- Previous overlay or injection repairs have failed — repeated failure of less invasive methods indicates the membrane system itself is the root cause.
- Membrane was never installed or was installed to an inadequate standard — common in older buildings or poor-quality renovation works.
When It Is a Waste of Money
- The leak is caused by a floor trap collar separation — the collar can be repaired locally without hacking the entire floor.
- The leak is caused by a pipe leak beneath the slab — hacking the floor and re-waterproofing does not fix a leaking pipe. The pipe must be repaired or replaced first, then waterproofing reinstated.
- The leak is caused by grout or sealant failure at the surface level — surface re-grouting or re-sealing resolves this without membrane removal.
- The symptom is condensation, not a leak — re-waterproofing a floor that has no membrane failure will not stop condensation. The dampness returns immediately.
Key Factors for Success
👉 The new membrane must be applied to a clean, dry, properly prepared structural slab. Applying membrane over damp concrete, loose material or contaminated surfaces causes adhesion failure.
👉 All penetrations (floor trap, pipe sleeves, wall-floor junction) must be detailed correctly — these are the failure points, not the field area of the membrane.
👉 The membrane must extend a minimum of 150mm up all walls (Singapore standard practice), with 1800mm height in shower zones and 300mm at basin areas.
👉 Corner reinforcement (internal corners, wall-floor junctions) with embedded fabric strip is essential — these are the highest-stress points where cracking initiates.
👉 The waterproofing must be flood-tested for a minimum of 24 hours (48 hours recommended) before screed and tiles are installed. Any leak detected during the flood test must be repaired and re-tested before proceeding.
👉 No chasing of pipes or conduits into walls after the waterproofing membrane has been applied — chasing penetrates the membrane and creates a new leak path.
In many cases, full hacking is carried out unnecessarily when the actual leak source is localised — proper diagnosis is required before committing to this method.
Common Failure Reasons
- Membrane applied over damp substrate — adhesion failure.
- Insufficient membrane thickness or missed areas — particularly at corners and penetrations.
- Flood test not performed or leaks during flood test ignored.
- Screed installed before membrane has fully cured.
- Post-waterproofing works (chasing, fixing, drilling) penetrating the membrane.
Overlay Waterproofing (Non-Hacking / Topical Application)
What It Is
Application of a waterproofing coating or membrane over the existing floor finishes (on top of tiles) without hacking. Common overlay systems include acrylic waterproofing coatings, polyurethane liquid membranes, or epoxy coatings applied directly to the existing tile and grout surface.
👉 Overlay systems are marketed as a cost-effective, non-invasive alternative to full hacking. In specific limited conditions, they can work. In most conditions, they fail.
When It Is the Correct Approach
- Surface-level water ingress through deteriorated grout and tile joints — where the underlying membrane is intact but water is entering through the tile surface itself.
- Balcony or open terrace re-coating — where the existing substrate is sound and the overlay is applied as a protective wearing layer.
- Temporary measure to reduce water ingress while planning a full repair — buying time, not a permanent fix.
When It Is a Waste of Money
- The underlying waterproofing membrane has failed — an overlay on top of tiles does not replace the membrane beneath the screed. Water continues to travel through the failed membrane beneath the overlay, finding alternative exit paths (walls, adjacent rooms, penetrations).
- Active water pressure from below — if water is being pushed upward through the slab (e.g., from a pipe leak or hydrostatic pressure), an overlay coating on the surface will be pushed off from beneath.
- The existing tile surface is not properly prepared — overlay membranes require a clean, degreased, mechanically abraded surface for adhesion. Applying over contaminated or poorly prepared tiles results in peeling and delamination.
- Bathroom floors with multiple penetrations — floor traps, pipe sleeves and wall-floor junctions are the critical failure points. An overlay can coat the field area but cannot properly seal these penetrations the way a membrane applied directly to the slab can.
Key Factors for Success
👉 Surface preparation is the single most critical factor. Tiles must be cleaned, degreased, and mechanically abraded (not just cleaned with detergent). Glossy tile surfaces must be roughened for adhesion.
👉 All grout joints must be raked out and re-sealed before the overlay is applied — the overlay bridges the joint, but if the joint is hollow, the overlay will crack at the joint line.
👉 The overlay system must be flexible enough to accommodate minor thermal and structural movement. Rigid coatings crack at joints and corners.
👉 Wall-floor junctions and penetrations must be reinforced with embedded fabric or tape — the overlay alone at these points will crack.
Why Overlay Repairs Have a High Failure Rate
👉 Most overlay failures are caused by inadequate surface preparation, not by the coating product itself. The coating manufacturer’s data sheet specifies preparation requirements that are frequently not followed on site.
👉 Overlay coatings are thin — typically 1–2mm. They cannot bridge significant cracks, accommodate structural movement, or resist water pressure from behind.
👉 The overlay does not address the actual failure (the membrane beneath the screed). It adds a second barrier on top, but if the primary barrier has failed, the secondary barrier is working under conditions it was not designed for.
Polyurethane (PU) Injection
What It Is
Injection of polyurethane resin into cracks, joints, voids or behind surfaces to seal active water leaks. PU injection is a specialised technique used primarily for below-grade structures (basements, lift pits), concrete cracks and construction joints.
There are two types of PU injection resin:
Hydrophobic PU — reacts with water to form a flexible, water-resistant foam or gel. Does not bond to wet concrete surfaces. Used for sealing active water leaks where flexibility is needed (live cracks, movement joints).
Hydrophilic PU — absorbs water and swells to form a tight seal within the crack or void. Bonds to wet concrete. Used for sealing cracks and joints where the resin needs to conform to the crack geometry and maintain seal through minor movement.
When It Is the Correct Approach
- Active water leaking through concrete cracks in basement walls or slabs — PU injection seals the crack from within, cutting off the water path.
- Construction joint leakage in below-grade structures — PU resin injected along the joint seals the waterstop deficiency.
- Lift pit water ingress through cracks and joints — PU injection can seal the entry points under active water flow.
- Leaking pipe penetrations through concrete walls — PU injected around the penetration fills the gap between the pipe and the concrete.
- Emergency leak sealing where immediate water stoppage is required — PU resin cures rapidly in contact with water.
When It Is a Waste of Money
- Widespread membrane failure beneath a bathroom floor — PU injection is a crack and joint sealant, not a membrane replacement. It cannot re-establish continuous waterproofing across a failed membrane area.
- Surface dampness from condensation — injection has no effect on condensation because there is no crack or water path to seal.
- Porous or honeycomb concrete over a large area — PU injection is effective for defined cracks and joints. Widespread porosity requires broader treatment (crystalline waterproofing, cementitious tanking).
- Dormant, non-leaking structural cracks — use epoxy injection for structural cracks that need strength restoration. PU is flexible but has no structural bonding capacity.
Key Factors for Success
👉 Correct resin selection — hydrophobic for active flow and movement joints, hydrophilic for tight cracks and joints requiring swelling seal.
👉 Injection pressure must be controlled — excessive pressure can extend the crack or damage the concrete. Insufficient pressure fails to fill the crack completely.
👉 Injection ports must be spaced correctly along the crack — typically 150–300mm apart, angled to intersect the crack within the concrete depth, not just at the surface.
👉 The full depth of the crack must be filled — surface-only injection leaves the water path open behind the sealed face.
👉 For live (moving) cracks, hydrophobic PU provides the necessary flexibility. Using rigid epoxy on a live crack will re-crack.
Common Failure Reasons
- Wrong resin type for the application (rigid where flexible was needed, or vice versa).
- Incomplete injection — resin did not reach the full crack depth or length.
- Excessive injection pressure extending the crack.
- Attempting to use PU injection to solve a problem that requires membrane repair.
Epoxy Injection
What It Is
Injection of structural epoxy resin into dormant (non-moving) concrete cracks to restore the structural bond across the crack and seal it against water passage. Epoxy injection produces a rigid, high-strength bond — often stronger than the original concrete.
When It Is the Correct Approach
- Dormant structural cracks in concrete members (beams, columns, slabs, walls) where structural integrity must be restored.
- Cracks caused by shrinkage, thermal cycling or one-time loading events that have stabilised and are no longer moving.
- Cracks in above-grade structures where flexibility is not required and structural bonding is the priority.
When It Is a Waste of Money
- Live (actively moving) cracks — epoxy is rigid and will crack again if the crack continues to move. Use flexible PU injection instead.
- Active water flow through the crack — epoxy cannot cure properly in the presence of flowing water. PU injection must be used first to stop the water, followed by epoxy for structural bonding if required.
- Cosmetic surface cracks in non-structural elements — epoxy injection is unnecessary for hairline cracks in plaster or render that have no structural significance.
Key Factors for Success
👉 The crack must be confirmed as dormant (not moving) through crack monitoring before epoxy injection.
👉 The crack must be dry — epoxy does not bond to wet surfaces and does not cure properly in the presence of water.
👉 Injection must fill the full depth of the crack. Surface sealing without full-depth filling leaves a void that can re-crack.
👉 For cracks that were initially leaking, PU injection should be performed first to stop the water, followed by epoxy injection for structural bonding once the crack is dry.
Crystalline Waterproofing (Negative-Side Application)
What It Is
A cementitious coating containing crystalline technology applied to the interior (negative) face of concrete walls and slabs. The active crystalline chemicals penetrate into the concrete pore structure and react with moisture and calcium hydroxide to form insoluble crystals within the capillaries and micro-cracks, blocking water passage.
👉 Crystalline waterproofing is unique because it works from the inside — it does not need to be applied on the water-pressure side.
When It Is the Correct Approach
- Below-grade structures where the external (positive-side) membrane has failed and is inaccessible for repair — the crystalline coating is applied internally without excavation.
- Concrete water tanks, reservoirs and lift pits — where internal application is the only practical access.
- Rising damp through ground floor slabs — crystalline treatment applied to the floor surface can reduce moisture transmission through the slab.
- Supplementary treatment to enhance the waterproofing performance of new concrete — applied during construction as a belt-and-braces measure.
When It Is a Waste of Money
- Non-concrete substrates — crystalline technology only works in concrete (it requires calcium hydroxide from the cement to form crystals). It does not work on masonry, brick, timber or other materials.
- Large structural cracks — crystalline waterproofing seals micro-cracks and capillaries (up to approximately 0.4mm). Structural cracks wider than this must be repaired first (PU or epoxy injection), then crystalline coating applied as a secondary barrier.
- Surface-applied over contaminated or deteriorated concrete — the coating requires a sound, clean concrete substrate. Delaminating, carbonated or oil-contaminated surfaces prevent crystal growth into the pore structure.
Key Factors for Success
👉 Concrete surface must be clean, sound and saturated with water (SSD — saturated surface dry condition) before application. Dry concrete prevents crystal migration into the pore structure.
👉 Active leaks must be stopped first (PU injection or fast-setting hydraulic cement plugs) before crystalline coating is applied.
👉 Multiple coats are required — minimum two coats applied in opposing directions to ensure full coverage.
👉 The coating must be kept moist for a curing period (typically 48–72 hours) to allow crystal growth to develop fully.
Cementitious Tanking
What It Is
A rigid, multi-coat cementitious render system applied to the interior face of basement walls and slabs to form a continuous waterproof barrier. The tanking system is designed to resist hydrostatic pressure from the negative side.
When It Is the Correct Approach
- Basement walls and slabs with widespread seepage where individual crack or joint injection is insufficient.
- Below-grade structures requiring a continuous internal waterproof barrier.
- Lift pits and sump pits where the entire internal surface needs waterproofing.
When It Is a Waste of Money
- Structures with active high-pressure water flow — tanking systems have pressure limits. Active leaks must be stopped with injection before the tanking system is applied.
- Over substrates that are structurally unsound — cementitious tanking is rigid. If the underlying concrete is cracked and moving, the tanking will crack with it.
- Above-grade wet areas where a flexible membrane is more appropriate — cementitious tanking is designed for hydrostatic pressure resistance, not for wet area waterproofing where movement accommodation is more important.
Key Factors for Success
👉 All active leaks must be pre-treated (injection or hydraulic cement plugs) before tanking application.
👉 Substrate must be clean and mechanically prepared — no loose material, laitance or contaminants.
👉 Application thickness must meet manufacturer specifications — under-thickness application compromises pressure resistance.
👉 Fillets (coves) must be formed at all internal corners and wall-floor junctions to prevent stress concentration at right-angle junctions.
👉 Curing must be controlled — keep moist for the specified curing period. Premature drying causes shrinkage cracking in the tanking layer.
Pipe Relining
What It Is
Insertion of a new pipe liner (typically epoxy-impregnated fabric sleeve or CIPP — cured-in-place pipe) inside the existing pipe to create a new, sealed pipe within the old pipe. The liner is inflated against the pipe wall and cured to form a rigid or semi-rigid internal tube.
👉 Pipe relining avoids the need to hack out and replace the existing pipe — a significant advantage when the pipe is embedded in concrete or runs through inaccessible areas.
When It Is the Correct Approach
- Leaking or deteriorated concealed pipes that are embedded in walls, slabs or underground — where hacking to replace the pipe would cause major disruption.
- Cast iron, galvanised steel or copper pipes with internal corrosion or pinhole leaks — relining restores the pipe bore and seals the defects.
- Waste and drainage pipes with joint leaks, root intrusion or cracking — CIPP lining seals the entire length from within.
- Rainwater downpipes within high-rise box-ups — where hacking to access the pipe is extremely invasive.
When It Is a Waste of Money
- Pipes that have collapsed, are severely deformed or have major displacements at joints — the liner cannot form a round profile in a collapsed or misaligned pipe.
- Very small diameter pipes (below 40mm) — relining equipment and liners have minimum diameter limitations.
- Accessible pipes that can be replaced more easily and cost-effectively — if the pipe is in an accessible location (exposed, in a ceiling void, in a riser), direct replacement may be simpler, cheaper and more reliable than relining.
- Pipe leaks at a single localised point — if the leak is at one joint or connection that is accessible, a localised repair is more proportionate than relining the full length.
Key Factors for Success
👉 CCTV inspection of the pipe must be performed before relining to confirm the pipe condition, identify obstructions, confirm pipe diameter and assess whether relining is feasible.
👉 The pipe must be thoroughly cleaned (high-pressure jetting, mechanical cleaning) before relining — the liner must bond to a clean internal surface.
👉 Liner thickness and resin type must be appropriate for the pipe diameter and the service conditions (waste, storm, pressure).
👉 All branch connections must be reinstated after lining — the liner covers branch openings, which must be robotically cut open after curing.
Pipe Replacement
What It Is
Complete removal of the defective pipe section and installation of a new pipe. The most direct and definitive repair for a pipe leak.
When It Is the Correct Approach
- Accessible pipes where replacement is straightforward — exposed pipes, pipes in ceiling voids, riser pipes with access panels.
- Severely corroded galvanised steel pipes where the entire pipe run is compromised — localised repair or relining is insufficient when the pipe material has reached end of life.
- Pipes with major displacement, collapse or structural failure that cannot be relined.
- Hot water copper pipes with dezincification or pinhole corrosion across multiple points — the pipe material has failed systemically.
When It Is a Waste of Money
- Concealed pipes embedded in concrete where hacking would cause more damage than the leak — consider relining first.
- A single localised leak at a joint or connection — repair the joint rather than replacing the full pipe run.
Key Factors for Success
👉 Identify all defective sections before commencing — replace the full compromised length, not just the immediately visible leak point.
👉 Use appropriate pipe material for the application — PPR for hot and cold water supply, PVC for waste and drainage, copper or stainless steel where required by code.
👉 Ensure all connections, joints and penetrations through waterproofed elements are properly sealed after installation.
👉 Pressure test the new pipe installation before closing up walls or ceilings — verify zero leaks under operating pressure before reinstating finishes.

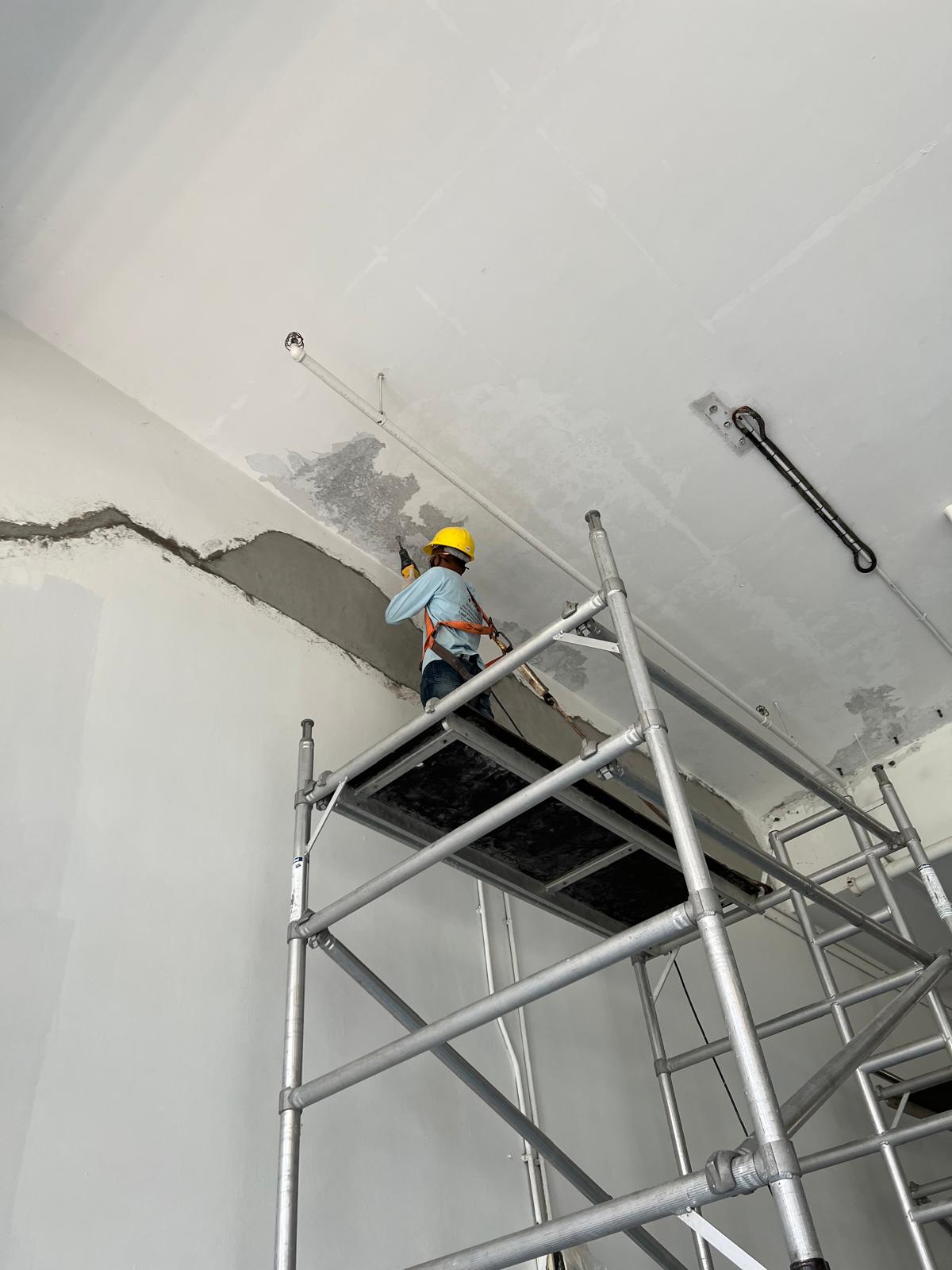

External Wall Crack Repair (Routing and Sealing)
What It Is
The crack is widened (routed) using a grinder to create a uniform channel, then filled with a flexible sealant (typically polyurethane or modified silicone) that accommodates ongoing movement.
When It Is the Correct Approach
- Surface cracks in external wall render or plaster that are allowing rain ingress — particularly cracks that are live (still moving due to thermal cycling or minor structural movement).
- Cracks at material junctions — where different materials meet (render to concrete, render to window frame) and differential movement causes cracking.
- Expansion joint sealant replacement — where the existing sealant has hardened, cracked or debonded.
When It Is a Waste of Money
- Structural cracks that require structural repair — routing and sealing addresses the weather seal but does not restore structural integrity. Structural cracks may require epoxy injection, carbon fibre reinforcement or structural modification.
- Widespread render cracking due to substrate failure — if the render itself has debonded from the wall, sealing individual cracks does not address the render failure. The render needs to be hacked off and re-applied.
- Cracks caused by an ongoing, unresolved structural issue (active settlement, foundation movement) — the cracks will reappear if the cause is not addressed.
Key Factors for Success
👉 The routed channel must have a minimum width-to-depth ratio that allows the sealant to deform without tearing — typically wider is better for movement joints.
👉 A bond-breaker (backer rod or tape) must be installed at the base of the channel to prevent three-sided adhesion — sealant must bond only to the two sides of the channel so it can stretch and compress freely.
👉 The sealant must be UV-stable, flexible, and compatible with the substrate material.
👉 Surface must be clean and dry before sealant application — moisture, dust or loose material prevents adhesion.
External Wall Re-Rendering
What It Is
Removal of the existing external wall render (plaster) and application of new render. May include application of a waterproof render system or an elastomeric coating to provide additional rain resistance.
When It Is the Correct Approach
- Widespread render cracking and debonding — where the existing render has failed across a broad area and individual crack sealing is impractical.
- Render carbonation allowing moisture penetration — the render has become porous and permeable over time.
- As part of a spalling repair — after concrete repair and reinforcement protection, new render is applied as the weather barrier.
When It Is a Waste of Money
- The render is sound but has isolated cracks — repair the individual cracks rather than re-rendering the entire wall.
- The leak source is not the wall render (it is a window, pipe penetration, or parapet) — re-rendering the wall does not fix a leak entering from a different source.
Key Factors for Success
👉 All loose, debonded and carbonated render must be removed back to sound substrate. Applying new render over failed render traps the problem.
👉 Any concrete spalling or reinforcement corrosion must be repaired before re-rendering — render over corroding steel will fail again.
👉 Bonding agent or mechanical key must be provided on smooth concrete surfaces for render adhesion.
👉 Render must be applied in appropriate thickness and layers — excessively thick single-coat application causes shrinkage cracking.
👉 Control joints should be incorporated in large render areas to accommodate movement and prevent random cracking.
Tile Re-Grouting and Sealant Replacement
What It Is
Removal of deteriorated grout from tile joints and application of new grout. Replacement of failed silicone or polyurethane sealant at movement joints, corners and junctions between tiles and fixtures (basin, bathtub, shower tray, wall-floor junction).
When It Is the Correct Approach
- Water ingress through cracked, missing or deteriorated grout in wet areas — where the underlying waterproofing membrane is intact and the leak is at the surface level only.
- Sealant failure at junctions — bath-to-wall, shower tray-to-wall, floor-to-wall sealant has cracked, peeled or developed mould.
- External wall tile pointing deterioration — allowing rain to penetrate behind the tiles.
When It Is a Waste of Money
- The underlying waterproofing membrane has failed — re-grouting the tile surface does not fix a membrane deficiency beneath the screed. Water will continue to pass through the failed membrane regardless of surface grout condition.
- Tiles are debonded from the substrate — if tiles are hollow (drumming when tapped), the adhesive bond has failed. Re-grouting does not re-bond tiles. The tiles need to be removed and re-fixed.
- Sealant applied over existing failed sealant without removal — new sealant over old does not bond properly. The old sealant must be fully raked out before new sealant is applied.
Key Factors for Success
👉 All old grout must be raked out to a minimum depth of 2/3 of the tile thickness — applying grout over old grout results in a thin, weak layer that cracks quickly.
👉 Use appropriate grout type — cement grout for standard joints, epoxy grout for wet areas requiring maximum water resistance.
👉 Sealant joints (bath-to-wall, floor-to-wall) must use flexible sealant, not rigid grout — these are movement joints.
👉 All old sealant must be completely removed and the joint surfaces cleaned with solvent before new sealant is applied.
👉 Sealant must be tooled to a concave profile with proper adhesion to both surfaces.
Spalling Concrete Repair
What It Is
Removal of damaged concrete, treatment of corroded reinforcement, and reinstatement with repair mortar or concrete. The repair addresses both the structural damage and the corrosion cause to prevent recurrence.
When It Is the Correct Approach
- Concrete with exposed or corroding reinforcement — the carbonation front or chloride contamination has reached the steel, causing active corrosion.
- Concrete delamination, cracking or spalling due to reinforcement corrosion expansion.
- Structural concrete members (beams, columns, slabs) requiring protection and restoration.
When It Is a Waste of Money
- Patching only the visible spall without treating the corrosion — the corrosion continues behind the patch and the repair fails within 1–3 years.
- Cosmetic patching without testing for carbonation depth and chloride levels — if the carbonation front extends beyond the repair area, corrosion will initiate in adjacent zones.
- Applying only a surface coating without repairing the concrete damage — coatings can slow carbonation but cannot reverse existing corrosion or restore spalled concrete.
Key Factors for Success
👉 All delaminated, carbonated and chloride-contaminated concrete must be removed back to sound material — 25mm minimum behind the reinforcement.
👉 Corroded reinforcement must be cleaned to bright metal (grit blasting or mechanical cleaning).
👉 Anti-corrosion primer must be applied to all exposed reinforcement before repair mortar is placed.
👉 Repair mortar must be compatible with the parent concrete (similar modulus, thermal coefficient) to prevent differential behaviour at the repair boundary.
👉 A protective coating (anti-carbonation paint, elastomeric coating or silane-siloxane impregnation) should be applied to the entire concrete surface — not just the repair area — to prevent carbonation advancing in adjacent zones.
👉 Where carbonation or chloride contamination is widespread, patch repair alone will not suffice — consider cathodic protection or full re-alkalisation treatment.
Sealant and Joint Replacement (General)
What It Is
Removal and replacement of sealant at joints throughout the building — expansion joints, construction joints, window perimeter joints, cladding panel joints, parapet joints and service penetrations.
When It Is the Correct Approach
- Aged sealant that has cracked, hardened, lost elasticity or debonded from the joint sides — sealant is a consumable item with a finite lifespan (typically 10–20 years depending on type, exposure and quality).
- Joints where water ingress has been confirmed by systematic testing — the sealant is the weather seal at these locations.
- Preventive replacement as part of a building facade maintenance programme — replacing sealant before it fails prevents water ingress.
When It Is a Waste of Money
- Applying new sealant over existing failed sealant — the bond is to the old sealant, not the joint substrate. The old sealant must be fully removed.
- Joint movement exceeds the sealant capacity — if the joint is moving more than the sealant can accommodate (typically ±25% of joint width for polyurethane, ±50% for silicone), the sealant will fail again. The joint design must be reviewed.
- The leak source is not the sealant joint — confirm by systematic testing before replacement.
Key Factors for Success
👉 Complete removal of old sealant and cleaning of joint surfaces.
👉 Correct backer rod installation to control sealant depth and prevent three-sided adhesion.
👉 Sealant type must be appropriate for the joint type, expected movement and exposure conditions.
👉 Application in suitable weather — sealant should not be applied in rain or to wet surfaces.
👉 Correct joint width-to-depth ratio — for movement joints, the sealant depth should be approximately half the joint width.
Liquid-Applied Acrylic Waterproofing (5-Coat System)
What It Is
A multi-layer liquid-applied waterproofing system built up in 5 coats — typically comprising a primer coat, 3 intermediate membrane coats with embedded reinforcement fabric, and a final topcoat. The system is roller- or brush-applied directly onto the roof substrate and cures to form a seamless, flexible, UV-resistant waterproofing membrane.
👉 This is one of the most commonly used rooftop waterproofing systems in Singapore — particularly for flat roof re-waterproofing, RC flat roofs, and roof terraces. Its key advantage is that it forms a seamless membrane with no joints, and can be applied over complex roof geometries including upstands, penetrations and irregular shapes without cutting and welding.
When It Is the Correct Approach
- Re-waterproofing of flat concrete roofs (RC slabs) — the most common application in Singapore residential and commercial buildings.
- Roof terraces and accessible flat roofs — where a trafficable topcoat can be specified.
- Roofs with numerous penetrations, pipe sleeves, scuppers and parapet upstands — the liquid system conforms to all details without requiring separate sheet pieces and welding.
- Overlay application over existing sound but deteriorated membranes — the acrylic system can bond to properly prepared existing coatings.
- Complex roof geometries with curved parapets, planter box edges, or irregular shapes — where sheet membranes would require extensive cutting and patching.
When It Is a Waste of Money
- The roof substrate has active structural cracks that are still moving — the acrylic membrane will crack at the same location. Structural cracks must be repaired (PU injection for live cracks) before the membrane system is applied.
- Ponding areas caused by inadequate falls or structural deflection — the acrylic system waterproofs the surface but ponding water degrades any membrane faster. Falls must be corrected first (minimum 1:80).
- Applying over a contaminated, damp or poorly prepared substrate — adhesion failure causes blistering, peeling and delamination regardless of product quality.
- Over existing debonded or blistered membrane — the acrylic system bonds to the existing membrane. If the old membrane lifts, the new system lifts with it. Failed existing membrane must be fully removed.
The 5-Coat Build-Up (Typical)
Coat 1 — Primer: Penetrating primer to seal the substrate, reduce porosity and provide a bonding surface for the membrane coats. Applied by roller or brush, allowed to cure.
Coat 2 — First membrane coat: Base coat of acrylic waterproofing applied at specified spread rate. While still wet, the reinforcement fabric (polyester or fibreglass mesh) is embedded into this coat.
Coat 3 — Second membrane coat: Applied over the embedded reinforcement to fully encapsulate the fabric and build membrane thickness.
Coat 4 — Third membrane coat: Additional membrane layer to achieve the required total dry film thickness (DFT). Each coat must be applied after the previous coat has cured — not before.
Coat 5 — Topcoat: UV-resistant, reflective topcoat (typically white or light-coloured) to protect the membrane from UV degradation and reduce thermal absorption. This is the wearing surface exposed to sun and weather.
👉 The reinforcement fabric between coats 2 and 3 is critical — it bridges micro-cracks, distributes stress and prevents the membrane from splitting at points of minor movement. Without reinforcement, acrylic membranes crack at stress points within 2–5 years.
Key Factors for Success
👉 Surface preparation is the single most important factor. The substrate must be clean, dry, free of laitance, oil, grease and loose material. All cracks must be pre-treated. Ponding areas must be levelled.
👉 Each coat must be allowed to fully cure before the next coat is applied — applying the next coat over a partially cured coat traps moisture, causing blistering and delamination. Cure time depends on temperature and humidity (Singapore’s high humidity extends cure time).
👉 The reinforcement fabric must be fully embedded — no wrinkles, no dry areas, no exposed fabric at the surface. Exposed fabric wicks water into the membrane system.
👉 Total dry film thickness (DFT) must meet manufacturer specifications — typically 1.5mm–2.0mm total DFT. Under-thickness application compromises waterproofing performance and lifespan.
👉 Spread rate for each coat must be controlled — applying too thin per coat reduces DFT; applying too thick per coat causes surface skinning while the interior remains uncured.
👉 All upstands, penetrations and detail areas must receive additional reinforcement layers — these are the failure points. The field membrane rarely fails; the details fail.
👉 Parapet upstands must be a minimum of 150mm above the finished roof level.
👉 The topcoat must be UV-reflective — dark-coloured topcoats absorb heat, accelerating membrane degradation in Singapore’s tropical climate.
👉 Application must not be done in rain or on wet surfaces. If rain is expected within the cure time of a coat, delay application.
Common Failure Reasons
- Insufficient surface preparation — the most common cause of premature failure.
- Coats applied before the previous coat has cured — causing inter-coat blistering.
- Missing or poorly embedded reinforcement fabric — membrane cracks at stress points.
- Insufficient total DFT — membrane wears through prematurely.
- Detail areas (upstands, penetrations) not given additional reinforcement — detail failure while the field membrane is still intact.
- Application over damp substrate or in humid conditions without adequate cure time.
Typical Lifespan
👉 8–12 years with proper application and maintenance. Singapore’s high UV exposure and humidity are the primary degradation factors. The topcoat degrades first — periodic topcoat renewal (every 3–5 years) can extend the total system lifespan.
Torch-On Membrane (Modified Bituminous Sheet)
What It Is
A factory-manufactured bituminous sheet membrane (SBS-modified or APP-modified bitumen) applied to the roof substrate by heating the underside with a gas torch until the bitumen melts and bonds to the substrate. The sheets are overlapped and torch-welded at joints to form a continuous waterproof layer.
👉 Torch-on membrane is one of the most widely used rooftop waterproofing systems in Singapore, particularly for new construction and major re-waterproofing works. Its key advantages are consistent factory-controlled thickness, high puncture resistance, and proven long-term performance.
SBS-Modified (Styrene-Butadiene-Styrene) — flexible, rubber-like, excellent elongation and fatigue resistance. Better for roofs with minor structural movement. More commonly used in Singapore.
APP-Modified (Atactic Polypropylene) — more rigid, higher heat resistance, good UV resistance. Suitable for fully exposed roofs but less flexible than SBS.
When It Is the Correct Approach
- New construction roof waterproofing — torch-on is a primary waterproofing system for new flat concrete roofs.
- Major re-waterproofing of flat roofs where the existing membrane has completely failed — full removal of old membrane and application of a new torch-on system.
- Roofs requiring high mechanical resistance — the sheet membrane is thicker and more puncture-resistant than liquid-applied systems. Suitable for roofs with foot traffic, equipment, or mechanical plant.
- Large, relatively simple roof areas with straight parapets and limited penetrations — the sheet format is efficient over large field areas.
When It Is a Waste of Money
- Roofs with highly complex geometry, numerous penetrations and irregular shapes — sheet membranes require cutting, shaping and welding at every detail. Liquid-applied systems are more efficient and reliable at complex details.
- Overlay over existing debonded membrane — the torch-on sheet bonds to the existing surface. If the existing membrane lifts, the new sheet lifts with it.
- Small, localised repair where only a specific area has failed — a full torch-on overlay for a single crack or detail failure is disproportionate. Localised patch repair or liquid-applied repair at the defect is more appropriate.
- Roof substrate has not been prepared and falls are inadequate — ponding water at sheet overlaps accelerates joint degradation.
Key Factors for Success
👉 Substrate must be clean, dry, primed and free of sharp protrusions. A bituminous primer is typically applied to the concrete substrate before torch application — the primer provides the bonding surface.
👉 Torch application temperature is critical — insufficient heat leaves unbonded areas (cold spots) where water migrates beneath the sheet. Excessive heat damages the membrane, burning through the bitumen and degrading the reinforcement.
👉 Sheet overlaps must be a minimum of 100mm side laps and 150mm end laps — and the overlap must be fully torch-welded with visible bitumen squeeze-out at the lap edge confirming full bonding.
👉 All T-joints (where three sheet edges meet) must be carefully detailed — T-joints are the highest-risk leak point in any torch-on system. The junction must be staggered (not aligned) and reinforced with an additional patch piece.
👉 Upstands at parapets and penetrations must be fully bonded to the vertical surface — minimum 150mm above finished roof level. The sheet must be mechanically fixed at the top of the upstand and sealed with a metal termination bar and sealant.
👉 Internal corners (wall-floor junctions at parapets) must receive a pre-formed fillet or additional reinforcement strip before the main sheet is applied — right-angle junctions are stress concentration points where the sheet bridges and eventually cracks.
👉 Pipe penetrations must be detailed with a prefabricated collar or cut piece, fully torch-welded to the field membrane — penetrations are the most common torch-on failure point after T-joints.
👉 The membrane must be protected from UV degradation — torch-on membranes are typically covered with a protection screed, ballast, or reflective coating. Fully exposed SBS membranes degrade faster under Singapore’s UV conditions. APP membranes have better UV resistance for exposed applications.
Common Failure Reasons
- Cold spots — areas where the torch did not achieve sufficient heat for full bonding. Water migrates beneath the sheet from any entry point and travels to the cold spot, creating a leak that is distant from the actual defect.
- Poor lap welding — overlaps that are pressed but not fully torched leave channels for water to wick between sheets.
- T-joint failures — improperly staggered or unreinforced T-joints are the number one leak point.
- Upstand termination failure — the sheet at the top of the upstand is not mechanically fixed or sealed, allowing water behind the membrane.
- Fish-mouths — wrinkles at laps that leave small openings when the sheet does not lie flat. Must be cut, re-torched and patched.
- Membrane damage during subsequent works — trades installing equipment, running cables or working on the roof puncture the membrane. All post-waterproofing roof works must be supervised.
Typical Lifespan
👉 15–25 years depending on membrane grade, UV protection and maintenance. Protected (covered by screed or ballast) torch-on membranes last longer than fully exposed membranes. Singapore’s high UV and thermal cycling are the primary degradation factors for exposed applications.
Choosing Between Acrylic 5-Coat and Torch-On for Rooftops
Both systems are proven and widely used in Singapore. The choice depends on the specific roof conditions:
👉 Complex geometry, many penetrations, irregular shapes → Acrylic 5-coat system. The liquid-applied format conforms seamlessly to any detail without cutting and welding.
👉 Large, simple roof areas with straight runs → Torch-on membrane. The factory-controlled sheet thickness and high puncture resistance are advantages over large field areas.
👉 Re-waterproofing over existing coatings → Acrylic 5-coat system is generally easier to apply over existing prepared surfaces. Torch-on requires complete removal of existing coatings for proper bonding.
👉 High-traffic or mechanical plant roofs → Torch-on membrane provides superior puncture and mechanical resistance.
👉 Budget and access constraints → Acrylic 5-coat requires less specialist equipment (roller/brush vs gas torch) and can be applied by trained applicators without hot-work permits. Torch-on requires skilled torch operators and hot-work safety measures.
👉 Both systems share the same critical success factor: detail work at upstands, penetrations and junctions determines whether the roof leaks — not the field membrane.
Roof Repair: General Principles
Regardless of the membrane system (acrylic, torch-on, or other), all roof waterproofing repairs share common principles:
👉 Substrate must be repaired, levelled and dried before membrane application — falls must be maintained (minimum 1:80) to prevent ponding on the new membrane.
👉 All details — parapet upstands, pipe penetrations, scuppers, expansion joints, roof-to-wall junctions — must be individually detailed with the membrane system. Detail failures cause more roof leaks than field membrane failures.
👉 Upstand height must be adequate — minimum 150mm above the finished roof level at all perimeter and penetration upstands.
👉 The membrane must be protected from mechanical damage — a protection screed, ballast or walkway pads over membrane in trafficked areas.
👉 Flood testing (or supervised water spray testing for sloped areas) must be performed before protection is installed.
👉 If the leak is at a detail (parapet upstand, pipe penetration, scupper, expansion joint) and the field membrane is intact — repair the detail rather than replacing the entire membrane.
👉 The roof substrate must be structurally sound — membrane over a cracked, moving substrate will crack with it.
👉 Overlay over a debonded or blistered existing membrane will fail — the new membrane bonds to the old membrane, not the substrate. If the old membrane lifts, the new membrane lifts with it.
How to Choose the Right Repair Method
Repair selection follows directly from correct diagnosis. If the diagnosis is wrong, the repair will be wrong — regardless of execution quality.
👉 Identify the root cause using the diagnostic framework (WHEN, WHERE, WHAT) before selecting a repair method.
👉 Match the repair method to the specific failure mechanism — not to the symptom.
👉 If the first repair attempt fails, re-diagnose before repeating the same method. A failed repair usually means the diagnosis was wrong or incomplete — not that the repair was poorly executed (though this is also possible).
👉 Multiple failure mechanisms can coexist — address each one with the appropriate method. A single repair method rarely resolves a complex leak with multiple causes.
👉 The cheapest method is not always wrong, and the most expensive method is not always right. A blocked weep hole that costs nothing to clear resolves a leak that a $10,000 re-waterproofing job cannot.
Common Repair Selection Errors
- Hacking and re-waterproofing for a pipe leak — the pipe is still leaking after the new membrane is installed.
- PU injection for a failed bathroom membrane — injection seals cracks, not membrane areas.
- Overlay coating on a floor with a failed membrane beneath — the overlay is a surface treatment that does not address the subsurface failure.
- Sealant replacement without checking the substrate — if the concrete behind the sealant is cracked or porous, new sealant at the joint does not stop water entering through the concrete.
- Spalling patch repair without corrosion treatment — the patch falls off within 1–3 years as corrosion continues.
- Re-rendering a wall to stop a window leak — the water is entering at the window frame, not through the render.
Summary
Every repair method has specific conditions under which it works and specific conditions under which it fails.
👉 Full hacking and re-waterproofing is the definitive repair for membrane failure — but it is wasted if the cause is a pipe leak, condensation or surface grout failure
👉 Overlay waterproofing has a limited role — it addresses surface-level water ingress only, not subsurface membrane failure
👉 PU injection is effective for sealing active leaks through cracks and joints in concrete — particularly in below-grade structures — but it is not a membrane replacement
👉 Epoxy injection restores structural bond across dormant cracks — but must not be used on live cracks or in the presence of active water
👉 Crystalline waterproofing is uniquely effective for negative-side application on concrete — but only works on concrete substrates
👉 Pipe relining avoids invasive hacking for concealed pipe repairs — but requires CCTV confirmation and cannot address collapsed or severely deformed pipes
👉 Spalling repair must address the corrosion cause, not just the visible damage — patching without treating corrosion guarantees failure
👉 Sealant replacement is a routine maintenance item — but new sealant over old sealant will fail
👉 Acrylic 5-coat system excels at complex roof geometries and numerous penetrations — but every coat must fully cure before the next is applied, and reinforcement fabric is non-negotiable
👉 Torch-on membrane provides factory-controlled thickness and high puncture resistance — but T-joints, cold spots and lap welding quality determine success or failure
👉 For all roof systems, detail work at upstands, penetrations and junctions determines whether the roof leaks — not the field membrane
👉 The most important factor in repair success is correct diagnosis — the right method applied to the wrong cause still fails
Not Sure Which Repair Method Applies to Your Leak?
Choosing the correct repair method depends on accurately identifying the source of the leak. Applying the wrong method — even if done correctly — will not resolve the issue.
If you are dealing with recurring leaks, failed past repairs or uncertainty about the correct approach, a proper diagnosis should be carried out before selecting any repair method.
You may request a professional leak assessment from Flux Solutions to to determine the root cause and appropriate repair strategy.
